|Standard:||AISI, ASTM, BS, DIN, GB, JIS||Certification:||ISO, RoHS, SGS|
|Surface Treatment:||Color Coated, Printech||Application:||Building Construction, Sandwich Panels, Corrugated Roof|
|Edge:||Mill||Stock:||Produced Per Oders|
|Trademark:||Customizable||Transport Package:||Seaworthy Standard Package|
|Specification:||Thickness 0.12~1.5mm, Width≤1300mm||Origin:||Shandong China|
|HS Code:||7210701000||Color:||Ral Color, Brick Texture, Wooden Printech|
|Special Use:||High-strength Steel Plate||Paint Type:||Polyester(PE), Silicone Modified Plyester (SMP), HDP, PVDF|
|Inner Diameter:||508mm / 610mm||Base Material:||Zinc, Aluzinc, Galvanized Steel, Galvalume Steel, Stainless Steel, Aluminum|
|Painting Coating:||Top Coat 5 + 15um , 5+20um, Back Coat: 5-15um|

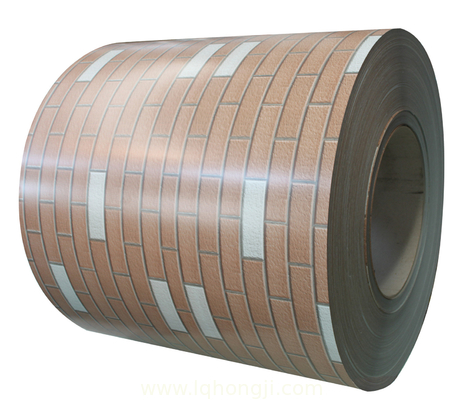

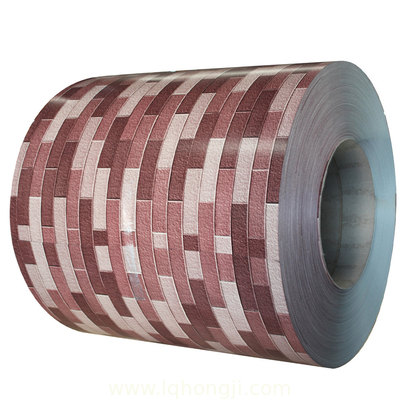

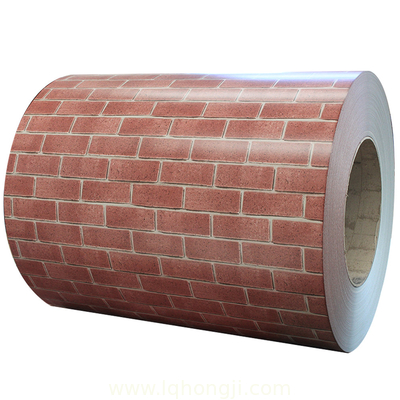

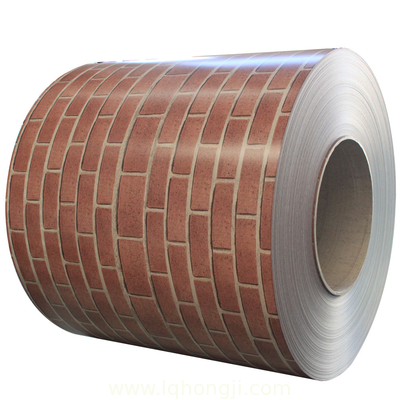

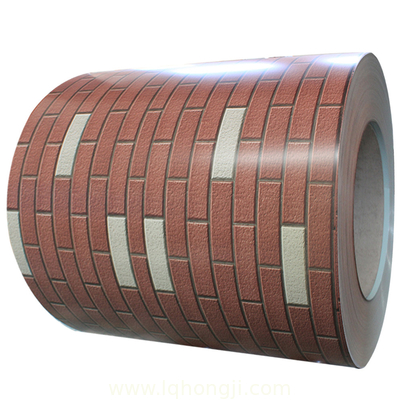

Red Brick color coated Steel Coil Prepainted for steel building material
Introduction of our company
We provide printech Pattern PPGI products, being produced same as natural patterns such as wood, marble, granite, camouflage, stone, emboss according to the usage of the interior and exterior decoration.
Superior to corrosion-proof, weatherability, and processing by applying weatherability ink and high degree of hardness and high processing.
Printech PPGI is high class printing steel plate with sophisticated and clear design produced by graviour offset process that prints patterns on the steel plate.
Environment-friendly product not occurring in harmful ingredient to human body
Various coating options are available, depending on the demand of our customers:
Polyester (PE) Coating
Silicone Polyester (SMP) Coating
Fluorocarbon Coating (PVDF)
Specification of brick texture printech steel coils China
Brick design prepainted galvanized steel plate has regular arrangement of different colors and has brick personality but also has a classical rhyme of red brick. Rugged is it initial posture. Different colors is it real character. With the most natural form, create the most casual original style. Mottled brick pattern, modern architecture, just like the dialogue between the years and time--taling about the past and present.
We foucs on the development and production of exterior wall brickcolor steel sheet, 3D effects, made by 5 suits of printing technology.It has a strong sense of three-dimensional, high precision, simple construction,cost savings, nano-environmental technology, replace real marble effectively.
|Product Name||Brick plain color coated steel coils|
|Zinc Coating||30-275gsm/ m2|
|Paint||PVDF, PE, SMP, HDP|
|Coil Weight||3~7 Tons|
|Acid Resistance||Surface immersed with 5%HCL(V/V) for 24H without change(PVDF, 48H)|
|Solvent Resistance||Brushing 100 times with butanone no appearance to bottom(PVDF, 200times)|
|Chromatism||The coating color is almost the same as confirmed by buyer and seller,the color difference tested by colorimeter between single coating and sample is less than 1.2( ΔE≤1.2),same lot products color difference ΔE≤1.0|
Brick pattern steel plates application cases
1.Construction: roofing and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds., soundproof walls, pipes and modular housing
2. Houshold appliances:washing machine, refrigerator, television, gas furnaces, air conditioner
and ventilation system, microwave oven, Vacuum cleaner, solar water heater electrical cabinets and other
3.Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.
4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
5. Furniture:lampshade, counter, signboard and medical facility etc.
6.Agricultural: Other barns, sheds, silos, pipelines and other greenhouse use: heat insulation cover, heat exchangers, dryers, warm water, etc.
The gloss can changeable by customers' request.
We can also do some high gloss, with some sparkling granule in it.
ΔE≤0.5, Paint Thickness:±1um,T-Bend Test:0T-2T ,Pencil hardness: min F.
MEK Test: min. 100 double rubs for top side.
Inner Packing: Anti-Rust Paper ;Outer Packing: Corner Protected.
Seaworthy Horizontal/Vertical Packing.
Standard Export EYE to up/to side.
Each coil 3 shipping mark label on side/inner/out.
Head and tail cut 5-10 meters.
Lined with moisture-proof paper.
Wrap a layer of transparent waterproof plastic film.
Inside roll sleeve core galvanized iron sheet.
Out side Wrapped in iron sheet.
Packing iron straps 4 horizontal by 5 vertical
IPPC fumigation wood pallet 10mm hight
container load with wood frame and Steel wire rope reinforced
Bulk shipping with wood cross support
Packing Details: Horizontal type, Vertical type ,Cut to Sheet type and Customized packing
Delivery Details: Shipped in 20 days after payment
Wooden grain PPGI/PPGL
Matt/Wrinkle color coated steel coils
