|Standard:||AISI, ASTM, BS, DIN, GB, JIS||Certification:||ISO, RoHS, SGS|
|Surface Treatment:||Color Coated, Printech||Application:||Building Construction, Sandwich Panels, Corrugated Roof|
|Edge:||Mill||Stock:||Produced Per Oders|
|Trademark:||Customizable||Transport Package:||Seaworthy Standard Package|
|Specification:||Thickness 0.12~1.5mm, Width≤1300mm||Origin:||Shandong China|
|HS Code:||7210701000||Color:||Ral Color, Camouflage Steel, Wood Grain PPGI|
|Special Use:||High-strength Steel Plate||Paint Type:||Polyester(PE), Silicone Modified Plyester (SMP), HDP, PVDF|
|Inner Diameter:||508mm / 610mm||Base Material:||Zinc, Aluzinc, Galvanized Steel, Galvalume Steel, Stainless Steel, Aluminum|
|Painting Coating:||Top Coat 5 + 15um , 5+20um, Back Coat: 5-15um||Surface:||Color Coated Galvalume Aluzinc Galvanized|

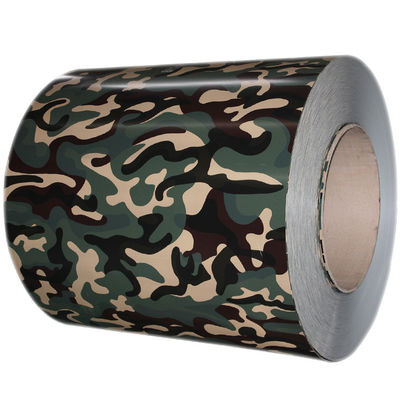

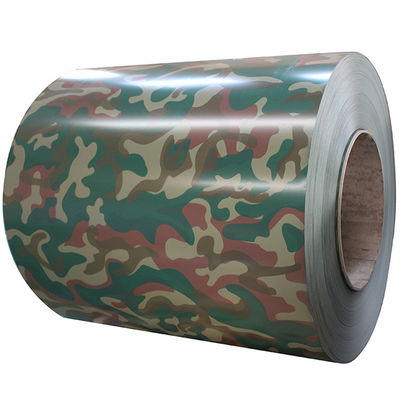

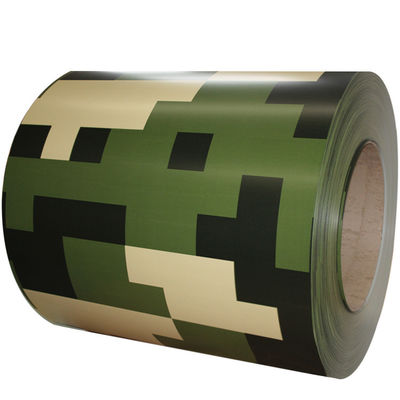

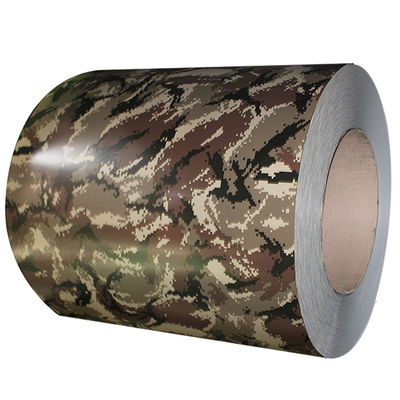

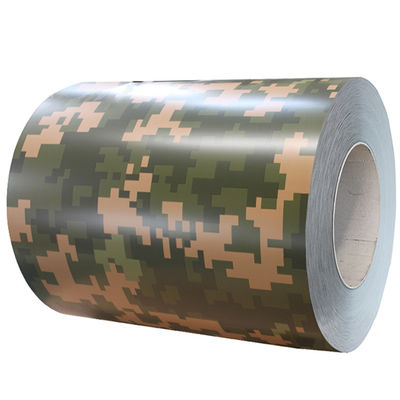

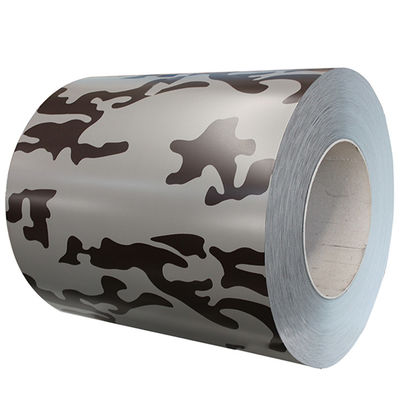

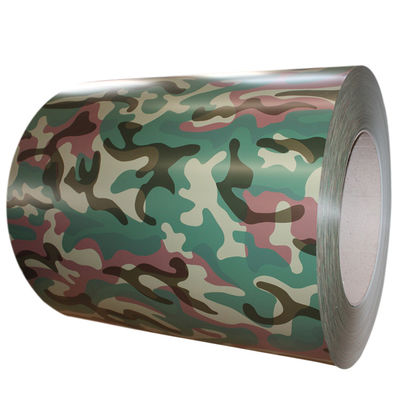

Camouflage PPGI PPGL color coated steel plate coil
Introduction of our company
We provide printech Pattern PPGI products, being produced same as natural patterns such as wood, marble, granite, camouflage, stone, emboss according to the usage of the interior and exterior decoration.
Superior to corrosion-proof, weatherability, and processing by applying weatherability ink and high degree of hardness and high processing.
Printech PPGI is high class printing steel plate with sophisticated and clear design produced by graviour offset process that prints patterns on the steel plate.
Environment-friendly product not occurring in harmful ingredient to human body
Various coating options are available, depending on the demand of our customers:
Polyester (PE) Coating
Silicone Polyester (SMP) Coating
Fluorocarbon Coating (PVDF)
|Product Name||Army/Camouflage color coated steel coils|
|Zinc Coating||30-275gsm/ m2|
|Paint||PVDF, PE, SMP, HDP|
|Coil Weight||3~7 Tons|
|Acid Resistance||Surface immersed with 5%HCL(V/V) for 24H without change(PVDF, 48H)|
|Solvent Resistance||Brushing 100 times with butanone no appearance to bottom(PVDF, 200times)|
|Chromatism||The coating color is almost the same as confirmed by buyer and seller,the color difference tested by colorimeter between single coating and sample is less than 1.2( ΔE≤1.2),same lot products color difference ΔE≤1.0|
Prepainted Camouflage Pattern steel plates application cases
1.Construction: roofing and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds., soundproof walls, pipes and modular housing
2. Houshold appliances:washing machine, refrigerator, television, gas furnaces, air conditioner
and ventilation system, microwave oven, Vacuum cleaner, solar water heater electrical cabinets and other
3.Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.
4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
5. Furniture:lampshade, counter, signboard and medical facility etc.
6.Agricultural: Other barns, sheds, silos, pipelines and other greenhouse use: heat insulation cover, heat exchangers, dryers, warm water, etc.
The gloss can changeable by customers' request.
We can also do some high gloss, with some sparkling granule in it.
Seaworthy Horizontal/Vertical Packing.
Standard Export EYE to up/to side.
Each coil 3 shipping mark label on side/inner/out.
Head and tail cut 5-10 meters.
Lined with moisture-proof paper.
Wrap a layer of transparent waterproof plastic film.
Inside roll sleeve core galvanized iron sheet.
Out side Wrapped in iron sheet.
Packing iron straps 4 horizontal by 5 vertical
IPPC fumigation wood pallet 10mm hight
container load with wood frame and Steel wire rope reinforced
Bulk shipping with wood cross support
Wooden grain PPGI/PPGL
Matt/Wrinkle color coated steel coils
Printech/Printed steel/Brick PPGI/PPGL
