Product Details:
Payment & Shipping Terms:
|
Type: | Steel Plate,steel Sheet | Znic Coating: | 20-275gsm |
---|---|---|---|
MOQ: | 10 Ton |
Specifications of Hot Dip Galvanized Steel Sheet/Plate:
1) Capacity: about 1,5000 tons per month for the steel sheet and coil product.
2) Grade: SGCC, DX51D, Q195, all according to the customer's request
3) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request
4) Thickness: 0.15mm - 3.5mm, all available.
5) Width: 600mm - 1500mm , all available.
6) Length: we can adjust the length according to your request
7) Elongation: Min. 7%
8) Zinc coating weight: Min. 60gm/mm2, double side
9) Tensile strength: 28.1 - 49.2kgf/mm2
10) Spangle: regular spangle, minimized spangle and zero spangle
11) Surface treatment: chemical passivating treatment, oils, passivating oils.
12) Edge: mill edge, cut edge
13) Min trial order 10 ton each thickness, 1x20' per delivery
Thickness | Width | Length | Zin Coating Weight |
0.15mm-3.5mm | 600mm-1500mm | As your request | 60g/m2-275g/m2 |
Production Facility of Hot Dip galvanized Steel Sheet:
Process of Hot Dip Galvanized Steel Sheet/Plate :
Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel.
Surface Treatment of Hot Dip Galvanized Steel Sheet/Plate :
Surface Treatment | Features |
Chemical passivating treatment | minimize the chance of white rust froming during transit and strorage |
maintain the bright, shiny appearance for a longer time | |
Oils | minimize the tendency for storage and transit stain |
Passivating oils | provide the protection from storage and transit stain by special chemcials called corrosion inhibitors |
Surface Finish of Hot Dip Galvanized Steel Sheet/Plate :
Surface finish | Pattern | Application |
Regular spangle | Standard spangles with flower pattern | General uses |
Minimized spanlge | Minimized spangles than regular | General painting applications |
Zero spangle | Extremely minimized spangles | Special painting applications |
Applications of Hot Dip Galvanized Steel Sheet/Plate:
1. Construction and building: roofings, ventilating duct; handrail; partition panel,etc.
2.Further processing: coating base plate.
3. Electric appliances: refrigerator; washing machine; recorder; microwave, etc.
Features of Hot Dip Galvanized Steel Sheet/Plate :
1) Hot Dip Galvanized Steel Sheet/plate is manufactured to have a long durability, strong corrosion resistance and shiny surface.
2) Hot Dip Galvanized steel features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending

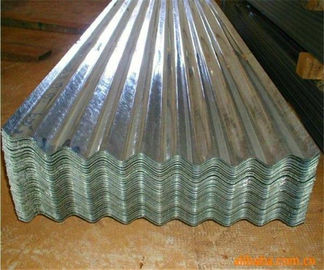

Our Hot Dip Galvanized Steel Sheet/Plate :
Our Hot Dip Galvanized Steel Sheet/Plate Packaging :
Our promise:
As the word leading manufacturer and supplier, Hongji steel makes“Service. Management. Craftsmanship." In our commitment to deliver world class service, Our Quality Control Department not only promise to provide the best quality products, excellent customer services, fast and reliable deliveries, and reasonable prices; but also goes the extra step to provide environment conscious products that will improve lives.
