Product Details:
Payment & Shipping Terms:
|
Type: | Steel Plate,steel Sheet | Znic Coating: | 20-275gsm |
---|---|---|---|
MOQ: | 10 Tons | Color: | RAL Color |
Product Description :
Raw material | SGCC, SPCC, DC51D, SGHC,A653 |
Certificate | ISO9001.ISO14001.OHSAS18001 |
Thickness | 0.12mm-2.0mm |
Width | 600mm-1250mm, or according to the customer's request |
Tolerance | thickness+/-0.01mm |
Surface treatment | coated, priting, copper coated, spray painted, color coated, chromate, ppgi steel sheet |
T Bending (top-coating) T Bending (back-coating) |
≤ 3T ≤ 4T |
Anti-MEK Wiping | 100times |
Zinc coating | 40-275g /m2 |
Coil ID | 508mm / 610mm |
Type of coating structure | 2/1 or 2/2 coating, or customized |
Standard | JIS G3302 / JIS G3312 / ASTM A653M / A924M 1998 / GB/T12754-2006, GB/T9761-1988, GB/T9754-1988, GB/T6739-1996, HG/T3830-2006, HG/T3830-2006, GB/T1732-93, GB/T9286-1998, GB/T1771-1991, GB/T14522-93 |
Grade | Q195-Q235 and SPCC, SPCD, SPCE, SGCC (DX51D+Z) SGCD (DX52D+Z), etc. |
Color | RAL / customized |
Application |
Building industry ,structural use, roofing, commercial use ,household appliance,industry facilities,office buildings
|
Surface protection |
PE, PVDF, SMP, HDP, etc. |
Coating Chief Feature
Project | Pencil hardness | Reverse impact | T bending | Cupping test | MEK cleaning |
Front/back | H/2H | 9J/6J | 3T/4T | 6mm/4mm | 100time/50time |

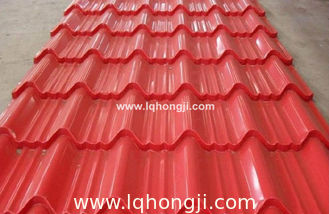

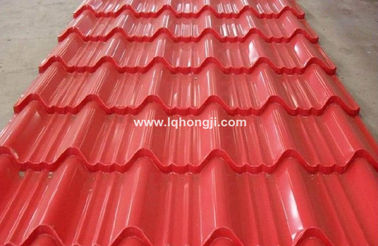

Structure of CORRUGATED ROOFING SHEET
Item | Thickness | Type | Feature |
Laminated film |
50m |
Polyethylene |
Protecting from scratchs and contamination (option) |
Top coat |
20m |
Polyester Fluorine |
Chemical resistance and formability |
Primer coat |
5m |
Polyester |
Workability, corrosion resistance and adhesion to the primer coating |
Chemical treatment |
1m |
Chromate |
Good adhesion and corrosion resistance |
Substrate |
0.2mm-1.2mm |
GI.GL,AL |
GI.GL,AL |
Back coat |
52m |
Epoxy |
Corrosion resistance and adhesion to the substrate |
Applications of CORRUGATED ROOFING SHEET:
1) Buildings and constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc.
2) Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.
3) Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.
4) Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks, etc.
Advantages of Our PPGI Steel Sheet:
1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet ( PPGI STEEL ).
2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.
3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.
4) Versatility: can be used in the various areas.
Prepainted Steel Sheet/Plate Packaging :
Our promise:
As the word leading manufacturer and supplier, Hongji steel makes“Service. Management. Craftsmanship." In our commitment to deliver world class service, Our Quality Control Department not only promise to provide the best quality products, excellent customer services, fast and reliable deliveries, and reasonable prices; but also goes the extra step to provide environment conscious products that will improve lives.
