Prepainted corrugated steel Roofing sheet

China Prepainted corrugated steel Roofing sheet supplier

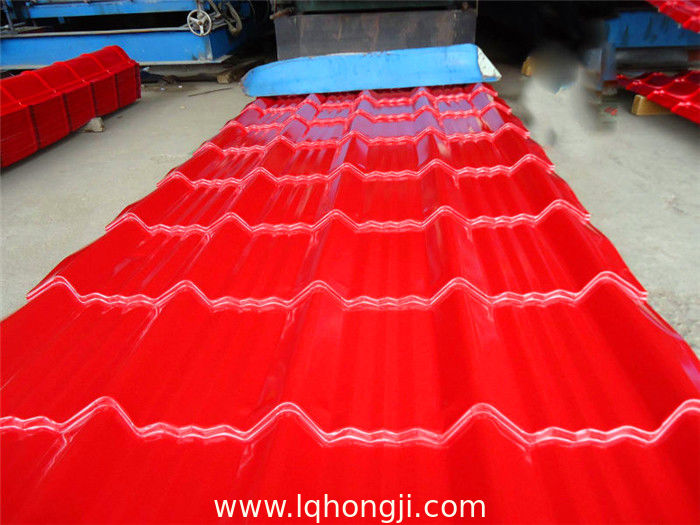

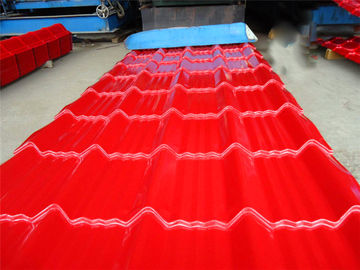

Large Image :  Prepainted corrugated steel Roofing sheet

Product Details:

Place of Origin: Shandong Province,China
Brand Name: Hongji
Certification: ISO9001,SGS
Model Number: Steel coil

Payment & Shipping Terms:

Minimum Order Quantity: 10 tons
Price: According to the quality and quantity
Packaging Details: Standard export seaworthy package
Delivery Time: Within 30days(usually no more than 20 days)
Payment Terms: T/T or L/C (We charge 30% of the deposit first.)
Supply Ability: 18000 tons per month
Delivery Port: Tianjin or Qingdao
Contact Now
Detailed Product Description
Type: Steel Plate,steel Sheet Znic Coating: 20-275gsm
MOQ: 10 Tons Color: RAL Color

Prepainted corrugated steel Roofing sheet

Prepainted corrugated steel Roofing sheet

Product Description :

Raw material SGCC, SPCC, DC51D, SGHC,A653
Certificate ISO9001.ISO14001.OHSAS18001
Thickness 0.12mm-2.0mm
Width 600mm-1250mm,  or according to the customer's request
Tolerance thickness+/-0.01mm
Surface treatment coated, priting, copper coated, spray painted, color coated, chromate, ppgi steel sheet

T Bending (top-coating)

T Bending (back-coating)

3T

4T

Anti-MEK Wiping 100times
Zinc coating 40-275g /m2
Coil ID 508mm / 610mm
Type of coating structure 2/1 or 2/2 coating, or customized
Standard JIS G3302 / JIS G3312 / ASTM A653M / A924M 1998 / GB/T12754-2006, GB/T9761-1988, GB/T9754-1988, GB/T6739-1996, HG/T3830-2006, HG/T3830-2006, GB/T1732-93, GB/T9286-1998, GB/T1771-1991, GB/T14522-93
Grade Q195-Q235 and SPCC, SPCD, SPCE, SGCC (DX51D+Z) SGCD (DX52D+Z), etc.
Color RAL / customized
Application

Building industry ,structural use, roofing, commercial use ,household appliance,industry facilities,office buildings



Surface protection

PE, PVDF, SMP, HDP, etc.

Prepainted corrugated steel Roofing sheet

Coating Chief Feature

Project Pencil hardness Reverse impact T bending Cupping test MEK cleaning
Front/back H/2H     9J/6J   3T/4T   6mm/4mm   100time/50time

Prepainted corrugated steel Roofing sheet

Structure of CORRUGATED ROOFING SHEET

Item Thickness Type Feature
Laminated film

50m

Polyethylene

Protecting from scratchs and contamination

(option)

Top coat

20m

Polyester Fluorine

Chemical resistance and formability

Primer coat

5m

Polyester

Workability, corrosion resistance and adhesion to the primer coating

Chemical treatment

1m

Chromate

Good adhesion and corrosion resistance

Substrate

0.2mm-1.2mm

GI.GL,AL

GI.GL,AL

Back coat



52m



Epoxy



Corrosion resistance and adhesion to the substrate



prepainted galvanized corrugated steel roofing sheets





Applications of  CORRUGATED ROOFING SHEET:

1) Buildings and constructions: roofing, ceilings, gutters,  venting lines, indoor decorations, window frames, etc.

2) Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.

3) Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.

4) Vehicle parts:  back-seat plates of buses and trucks, conveying systems, oil tanks, etc.

Prepainted corrugated steel Roofing sheet

Advantages of Our PPGI Steel Sheet:

1) Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet ( PPGI STEEL ).

2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.

3) Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.

4) Versatility: can be used in the various areas.











Prepainted Steel Sheet/Plate Packaging :



Galvanized Steel Sheet(Thickness: 0.15 - 3.5mm)

Our promise:

As the word leading manufacturer and supplier, Hongji steel makes“Service. Management. Craftsmanship."  In our commitment to deliver world class service, Our Quality Control Department not only promise to provide the best quality products, excellent customer services,  fast and reliable deliveries, and reasonable prices; but also goes the extra step to provide environment conscious products that will improve lives.
