PRE-PAINTED ALUMINUM – PVDF

China PRE-PAINTED ALUMINUM – PVDF supplier
PRE-PAINTED ALUMINUM – PVDF supplier PRE-PAINTED ALUMINUM – PVDF supplier PRE-PAINTED ALUMINUM – PVDF supplier PRE-PAINTED ALUMINUM – PVDF supplier PRE-PAINTED ALUMINUM – PVDF supplier PRE-PAINTED ALUMINUM – PVDF supplier

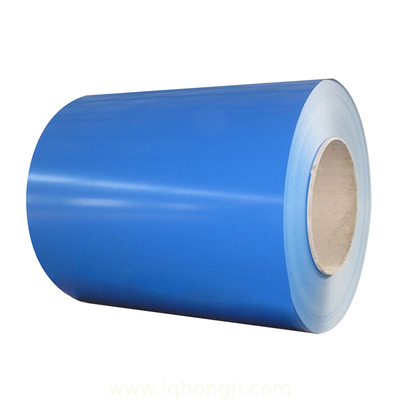

Large Image :  PRE-PAINTED ALUMINUM – PVDF

Product Details:

Place of Origin: China
Brand Name: Hongji
Certification: ISO9001, SGS
Model Number: A3003 H24/A3015

Payment & Shipping Terms:

Minimum Order Quantity: 5 tons
Price: 3000-4000 USD dollars/ton
Packaging Details: Standard export seaworthy package
Delivery Time: 20-25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 100000.00 tons/year
Contact Now
Detailed Product Description
Material: Aluminum Alloy Model Number: PE PVDF Coating Color Coated Aluminium Coil
Alloy: AA1100,AA3003,etc Surface: Color Coated, Embossed, Stucco
Color: RAL/PANTONG Or Customized Surface Treatment: PE & PVDF & Nano-PVDF Coating
Width: Within 1500mm Thickness: 0.05-3.0mm

PRE-PAINTED ALUMINUM – PVDF

Color coated aluminum coil (prepainted aluminum roll)
Color coated aluminum coil, as its name suggests, is the product after coloring the surface coating of aluminum plate or aluminum roll, mainly divided into PVDF(fluorine-carbon) color coated aluminum coil, PE(polyester) color coated aluminum coil.

What is color coated aluminum coil?

Color-coated aluminum coils are color-coated on aluminum plates or (aluminum coils). Common fluorocarbon color-coated aluminum and polyester color-coated aluminum are widely used in aluminum-plastic panels, aluminum veneers, and aluminum honeycomb panels. Aluminum ceiling, roof surface, leftovers, cans, electronic products. Its performance is very stable and not easy to be corroded. After special treatment, the surface can reach 30 years of quality assurance. The weight per unit volume is the lightest among metal materials.

The color coated aluminum coil is processed by washing, chromizing, roll coating, baking, etc., and the aluminum coil surface is coated with various color paint coatings.

PRE-PAINTED ALUMINUM – PVDF

Fluorocarbon coating (PVDF):

It is made by mixing fluorocarbon resin with fluoroalkene as the basic monomer, pigment, alcohol ester solvent and additives. After baking at high temperature to form a film, the molecular structure in the coating is tight, and it has super weather resistance. Fluorocarbon coatings can be divided into traditional fluorocarbon and nano-fluorocarbon coatings according to the surface film-forming structure. Especially suitable for decoration and display of indoor and outdoor decoration, commercial chains, exhibition advertisements in public places.

Coating thickness: PVDF (fluorocarbon)≥25micronPOLYESTER(polyester)≥18micron;

Glossiness: 10-90%;

Coating hardness: greater than 2H;

Adhesion: not less than level 1;

Impact resistance: 50kg/cm, without peeling paint and no cracks. The color of Polyester can be used for 20 years, while fluorocarbon can be used for 30 years without discoloration.

The Characteristic of Color Coated Aluminum Coil :

Flatness: No composite high-temperature indentation on the surface. There is no residual stress on the board surface, and it will not deform after shearing.

Decorative: Coated with wood grain and stone grain, it has a realistic sense of real material and a fresh natural beauty. The patterns are made at will, giving customers a wide range of personality choices, which can enrich the humanistic connotation of products and give people more beautiful enjoyment.

Weather resistance: The paint pattern made by coating and baking at high temperatures has high gloss retention, good color stability, and minimal change in color difference. The polyester paint is guaranteed for 10 years and the fluorocarbon paint is guaranteed for more than 20 years.

Mechanical: The use of high-quality aluminum, plastics, and adhesives, using advanced composite technology. The product has the bending and bending strength required by the decorative board. In the four seasons, the changes in wind pressure, temperature, humidity, and other factors will not cause bending, deformation, and expansion.

Environmental protection: Resistant to salt and alkali acid rain corrosion, it will not corrode and produce poisonous bacteria, does not release any toxic gas, does not cause corrosion of keel and fixed parts.

Flame retardancy: not less than B1 level according to national regulations.

PREPAINTED ALUMINUM
Alloy 1xxx, 3xxx,5xxx, 8xxx series
Temper O-H112
Thickness 0.18-3.0mm
Width ≤1500 mm
Coating PVDF, PE, HDP
Surface Smoothsurface,Anti-scratch surface,matt surface,frosted surface,embossed surface…
Color Plain color,Chameleon color,brushed color,wood color,marble color,customized deign color
Coating Thickness 8-40 micron
Coating Type Roll coating

Service

  • 1. All test report and samples and certificates can be free provided upon request
  • 2. Provide cutting service,product can be with coil,with sheets,with strip
  • 3. Protective film can be one side and both side
  • 4. Paint brand can be specified,compliance with ROHS standards
  • 5.The project has been applied to the external walls of airports, subways, government buildings, military units and high-end residential area and household electrical appliances
  • PRE-PAINTED ALUMINUM – PVDF
  • PRE-PAINTED ALUMINUM – PVDF
Product Paramenters
Product parameters
Aluminum Alloy
AA1100,AA3003,...
Coil thickness
0.024mm-1.5mm
Coil width
MAX 2020mm
Coating thickness
14-28 microns(PE:≥14micron,pvdf:≥25micron)
Coils core diameter
150mm,405mm,505mm
Coil weight
1.0 to 3.0 tons per coil
Coating paint
PE, PVDF
Color
white series,metallic series,dark series,gold series(accept color customs)
Temper
O - H112
Surface
Embossed, mill finish, coated
gloss
20-100%(matte:≥20,glossy:≥60)

Application

Color coated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, Honeycomb panel,Advertising sign,home appliances board and embossed aluminum coil.

PRE-PAINTED ALUMINUM – PVDF

PRE-PAINTED ALUMINUM – PVDFPRE-PAINTED ALUMINUM – PVDF

Our company is the leading manufacturer of metal decorative building materials since 2000 in China, which have been specializing in Color Coated Aluminum Coil.

We provide color coated aluminum coils/sheets, printech Pattern aluminum products, being produced same as natural patterns such as wood, marble, granite, camouflage, stone, emboss according to the usage of the interior and exterior decoration.

Superior to corrosion-proof, weatherability, and processing by applying weatherability ink and high degree of hardness and high processing.

PE/FEVE/PVDF color coated aluminum with good PE Paints and high performance of aluminum coil is produced by advanced roller coating. All performance parameters are up to or much higher than related national standards.

Material grade of aluminum coil:

1000 series:

The 1000 series aluminum plate is also called the pure aluminum plate. Among all the series, the 1000 series belongs to the series with the most aluminum content. The purity can reach more than 99.00%. The price is relatively cheap. Most of the circulation in the market is 1050 and 1060 series.

2000 series:

2A16 (LY16) 2A06 (LY6) 2000 series aluminum plate is characterized by high hardness, of which the content of copper is the highest, about 3-5%.

3000 series:

Mainly represented by 3003 3003 3A21. It can also be called anti-rust aluminum plate. The production process of the 3000 series aluminum plate of our nation is excellent. 3000 series aluminum plate is made of manganese as the main component, with content between 1.0-1.5. It is a series with good anti-rust function.

4000 series:

The aluminum plate represented by the 4A01 4000 series belongs to the series with the higher silicon content. The silicon content is usually between 4.5-6.0%. It belongs to construction materials, mechanical parts, forging materials, welding materials, with a low melting point, and good corrosion resistance.

Product description: Having the characteristics of heat resistance and wear resistance.

5000 series:

With 5052.5005.5083.5A05 series as representatives, the 5000 series aluminum plate belongs to the more commonly used alloy aluminum plate series, and the main element is magnesium, and the magnesium content is between 3-5%. It can also be called aluminum-magnesium alloy. The main characteristic is low density, high tensile strength, and high elongation.

6000 series:

with 6061 as a representative, it mainly contains two elements of magnesium and silicon. 6061 is a cold-processed aluminum forged product, which is suitable for applications that require high corrosion resistance and oxidation.

General characteristics of 6061: Having excellent interface characteristics, easy coating, high strength, good usability, and strong corrosion resistance.

The advantages of Color Coated Aluminum Coil:

  1. Light texture, easier to shape
  2. Corrosion resistance Because it has a tight oxide film on its surface, it has strong adhesion, oxidation resistance, acid resistance, alkali resistance, corrosion resistance, decay resistance, and ultraviolet resistance.
  3. Good temperature resistance, the melting point of aluminum is 660 degrees, the general temperature can not reach his melting point
  4. The board has extremely high strength, which can be cut, slitted, balanced, drilled, connected, fixed and compressed at the edge.










5/5 - (16 votes)

PRE-PAINTED ALUMINUM – PVDF



Standard seaworthy exporting packing with carton or pallets.
1. Waterproof plastic and strong wrapping paper cover 2. Metal belts baling and wooden pallets on the bottom
Also can packing as your request.
Clear dimensions are calculated by your inquiry. For your reference, 1mm thick, 1200 x 2400mm size, 1000 pieces, weight is estimated 7850KG, volume is estimated 6CBM.
Shipping from Shanghai or Qingdao port usually, other main ports in China is available too.



PRE-PAINTED ALUMINUM – PVDF

FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:What is the material of your products?
A: The material are mainly color coating Aluminum and color coated steel and aluminum composite panel.
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4. Q:Can you make new mold with customized size I need?
A: Yes, We can make mold for you .
5.Q:Can you provide OEM &ODM service?
A. Sure. We can help you print or emboss your logo. We're good at this and I always provide this service for home or abroad company.
